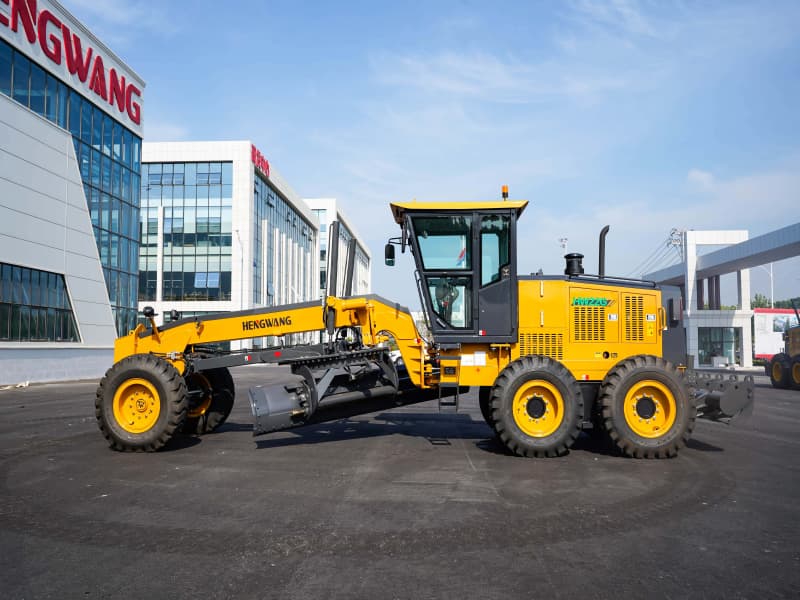

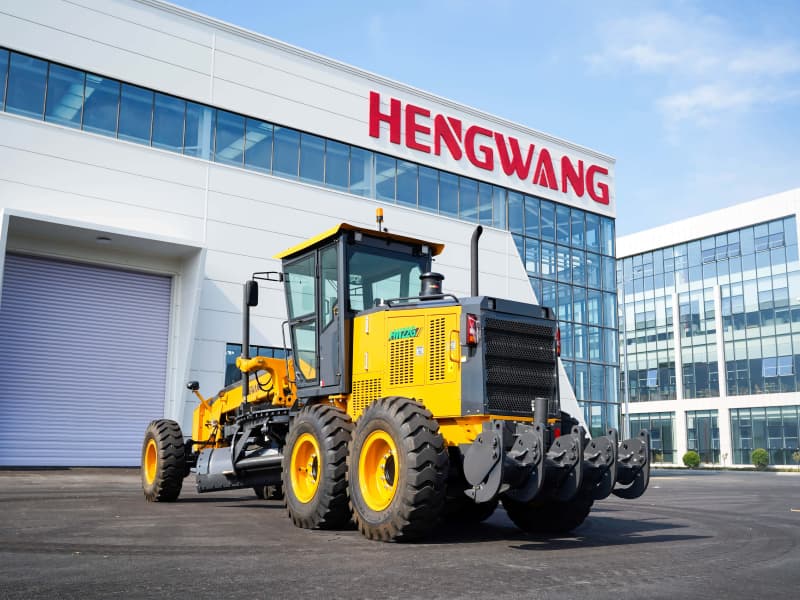

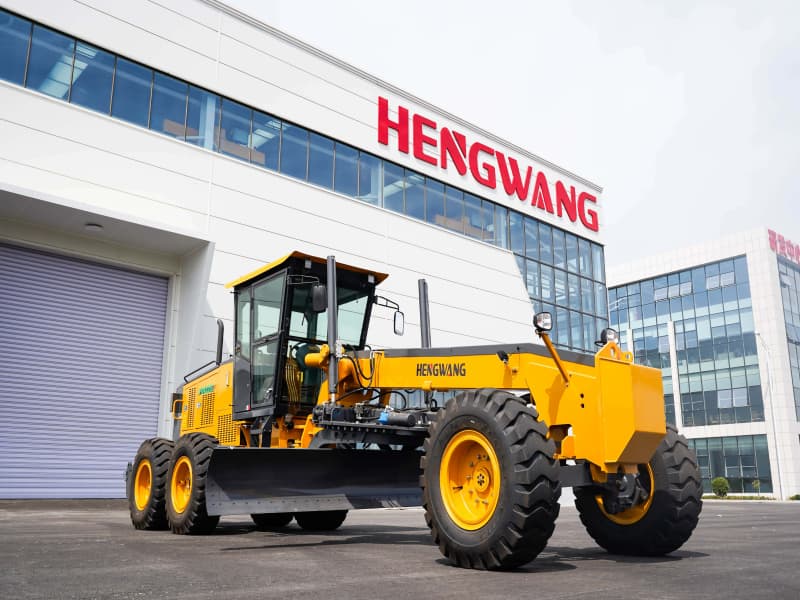

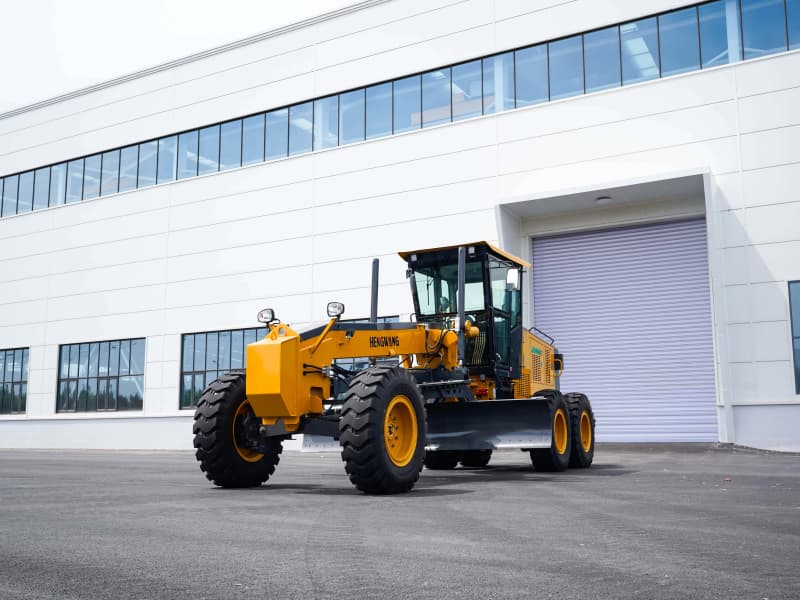

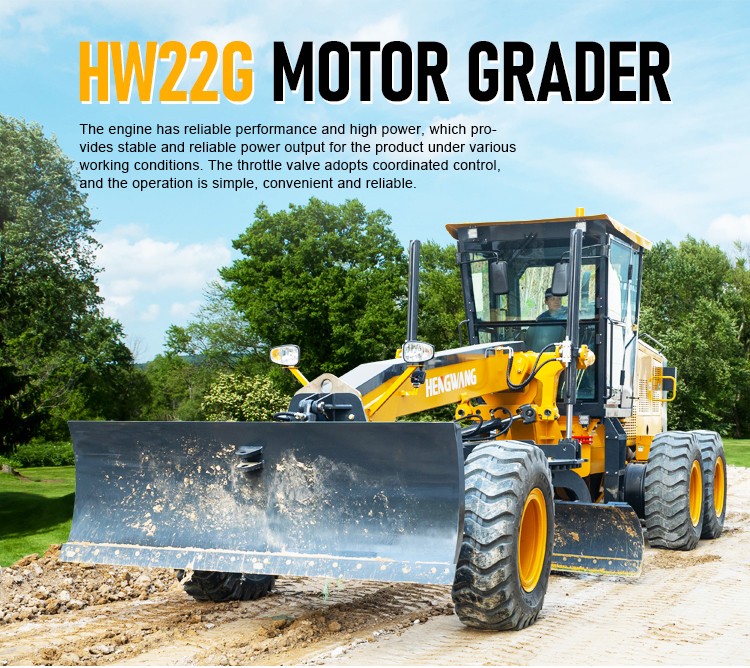

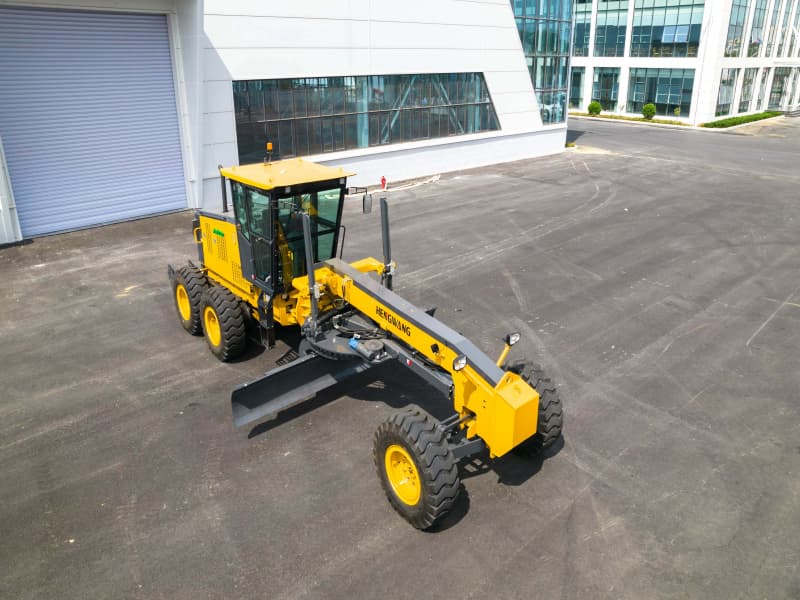

HW22G Motor Grader
Built for Powerful Grading and Efficient Jobsite Performance.
With a 160 kW Cummins engine and 17-ton operating weight, HW22G delivers strong power for road construction, mining and large-scale earthmoving. Its flexible hydraulic steering and adjustable blade help operators achieve efficient and precise grading, while optional attachments provide greater versatility for different projects.
Powerful Performance · Efficient Grading · Flexible Operation · Versatile Applications
| Item | Specification |
| Operating Weight | 17,000 kg |

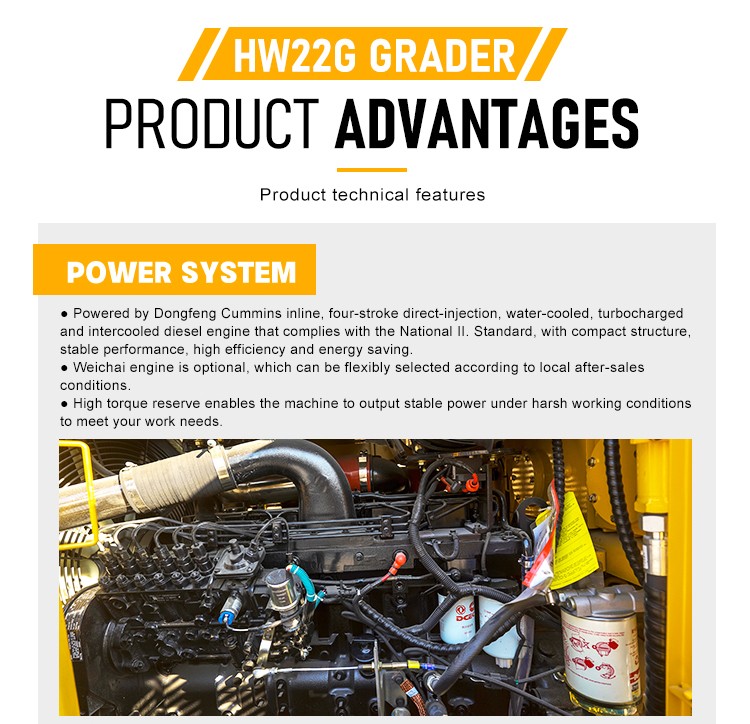

| Engine Model | Cummins 6CTA8.3-C215 |
| Number of Cylinders | 6 |
| Engine Type | 4-Stroke, Direct Injection, Water-Cooled |
| Air Intake | Turbocharged, Air-to-Air Intercooled |
| Bore × Stroke | 114 × 135 mm |
| Displacement | 8.3 L |
| Rated Power / Speed | 160 kW / 2,200 rpm |
| Maximum Traction Force | 90 kN |
| Maximum Torque | 980 N·m / 1,500 rpm |
| Rated Fuel Consumption | 223 g/kW·h |
| Transmission | Fixed-Shaft Type, Electro-Hydraulic Control |
| Torque Converter | Single-Stage, Single-Phase, Three-Element |
| Rear Axle | Modular Design, Planetary Reduction, No-Spin Automatic Differential Lock |
| Front Axle Oscillation Angle | ±15° |
| Item | Specification |

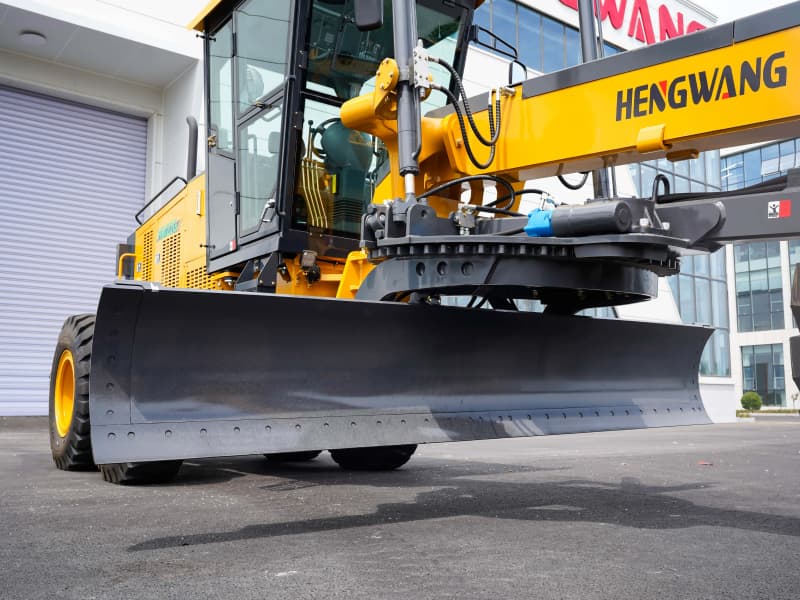

| Blade Rotation Angle | 360° |
| Blade Length | 3,660 / 3,965 / 4,270 mm |
| Blade Height | 635 mm |
| Maximum Blade Cutting Depth | 500 mm |
| Blade Lift Height | 440 mm |
| Maximum Side Reach | 1,900 / 1,950 mm |
